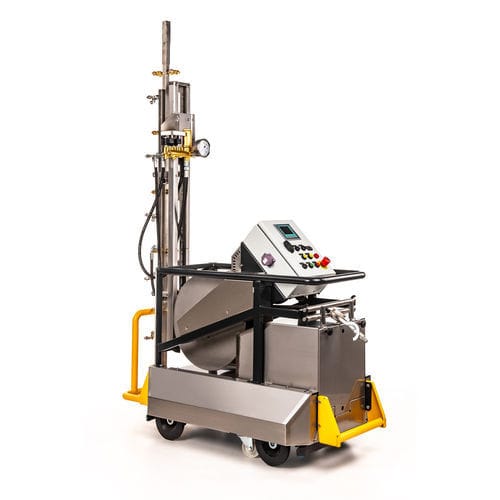

AST-02HR Greenhouse spray robot

Description

• AST-02HR Greenhouse spray robot trolley is another company proposal in the field of automatic trolleys for performing chemical plant protection treatments in professional growing.
• It is equipped with an automatic hose reel that connects to pressure generator.
• Built-in batteries supply control and drive circuits and allow for uninterrupted operation of trolley for about 6-8 hours – depending on the condition of rail-pipe system in the greenhouse.
• AST-02HR has an automated electrical maneuvering chassis.
• A modern PLC class driver from SIEMENS provides intuitive operation.
• And programming of operating parameters for up to 12 different settings / programs, enabling operation in automatic as well as manual mode.
• Mast is made of stainless steel and equipped with two independent spraying beams.
• One is intended for main spraying (simultaneous spraying on the right and left of row during the return).
• The other for spraying the ends (including walls) and the beginning of rows.
• AST-02HR Greenhouse spray robot is equipped as standard with a pressure gauge and 9 pairs of independently adjustable double housings with cone and triangular flat jet nozzles.
• Drain valves are installed at the bottom of each beam.
• Optionally, mast can be equipped with a special adapter directly spraying under the leaves of plants:
• Compact construction makes it easy to maneuver the trolley in a greenhouse. Trolley is characterized by reliability and high work efficiency.

Features:

• AST-23HR GREENHOUSE SPRAY ROBOT includes highest successful rate.
• High result.
• Scan thousands of plants multiple times a day .
• Reduce costs automate plant assessment also .
• It moves over the plants to create our unique 3D Models also.
• Hence we provide many parameters in one shot also.
• 3D and Multispectral data combined also.
• Independent of any conditions .
• Fully automatic spray robot.
• AST-02HR Greenhouse spray robot moves over the plants to create our unique angles to spray also.
• High scan interval – Scan day and night also.
• Robots have relatively minor variations in their physical form also.
