Description

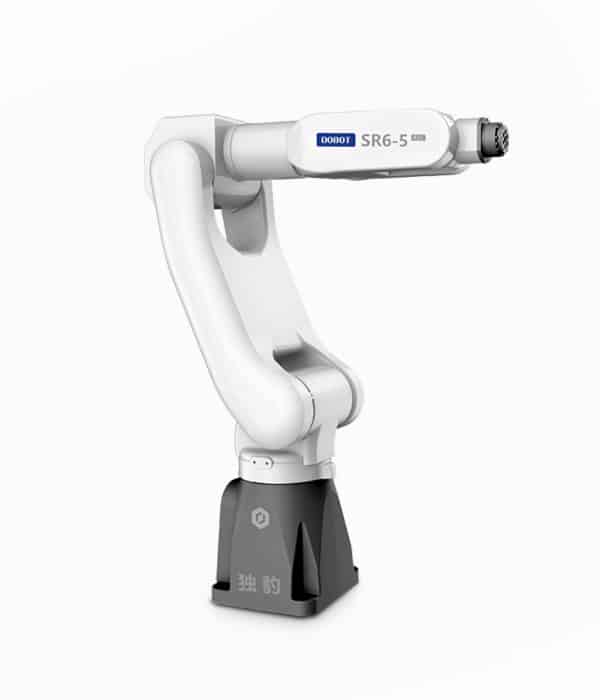

• DOBOT SR6-5925 offers a maximum 8kg end payload and a 910mm working range.
• No matter how complex the trajectory or environment is, DOBOT SR6-5925 can swerve at high speed without slowing down and present outstanding performance.

Specifications:

• Type: DT-DB-6R060-01I
• Reach: 925mm
• Position Repeatability: ±0.05mm
• Net Weight: 86kg
• User Air Pipe: φ6mm x 2
• User Circuitstandard configuration: 16 in/16 out
• Communication Mode: Ethernet, Modbus
• Internal PLC: support
• External Axis Control: support

Applications:

• Inspecting
• Assembling
• Measuring
• Polishing
• Sorting

• Material loading and unloading

About Dobot:

• Founded in 2015, Dobot Robotics is the creator of the world’s first desktop grade collaborative robot.
• We offer 8 main product lines: CRA, CRAS, CR, CRS, MG400, M1 Pro, Nova, and Magician, with more than a dozen of collaborative robot models.
• We are the first in the industry to offer a product line up that covers 0.5 to 20 kg payloads.
• To date, Dobot has sold over 68,000 collaborative robots to 100 countries and regions and has ranked first in Chinese robot exporter by volume 5 consecutive years.
• DOBOT  robots are currently operational across over 15 industries including consumer electronics, automotive, metal processing, semiconductor, healthcare, chemical and retail.
• DB Cobots is a United States based master distributor of Dobot Industrial Collaborative Robots located just outside of Philadelphia in Downingtown, Pennsylvania.
• We stock all models of Dobot Industrial Cobots and accessories and provide technical support, service and training.
• Limited space needs with no security fence required.
• Real-time obstacle avoidance with every-5ms dynamic monitoring, 10cm-proximity pre-touch sensing & online route planning combined to produce the best trajectory to avoid obstacles.
• Keep your employees safe with multi protection with force sensing, obstacle avoidance & camera entry detection.
• Easily programmable using visual, drag & drop and block-based programming language. Teachable by demonstration or single-hand guidance, real-time control on your mobile phone, iPad or tablet through Wi-Fi (Wireless Fidelity) connection.
