Description

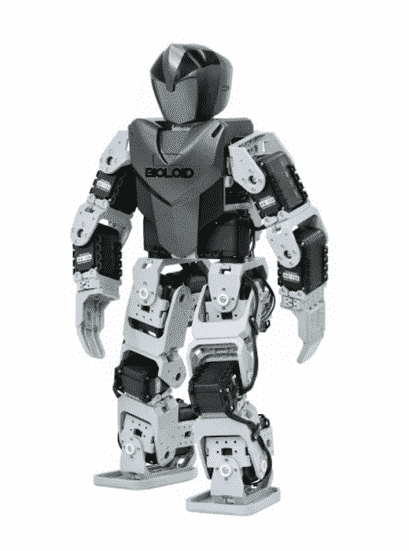

• The  BIOLOID PREMIUM ROBOT is a do-it-yourself educational robot kit using modular DC servo blocks.
• Great for education/robot competitions/entertainment that you can build various types of robot such as spider, dinosaur, and humanoid.
• BIOLOID PREMIUM ROBOT includes gyro sensor, DMS, and multi-channel wireless expendable remote controller.
•  With enhanced mobility and intelligence you can build your own robot and upgrade it as you please.
•   The evolution of
• BIOLOID PREMIUM ROBOT continues and inspires the creative minds worldwide.

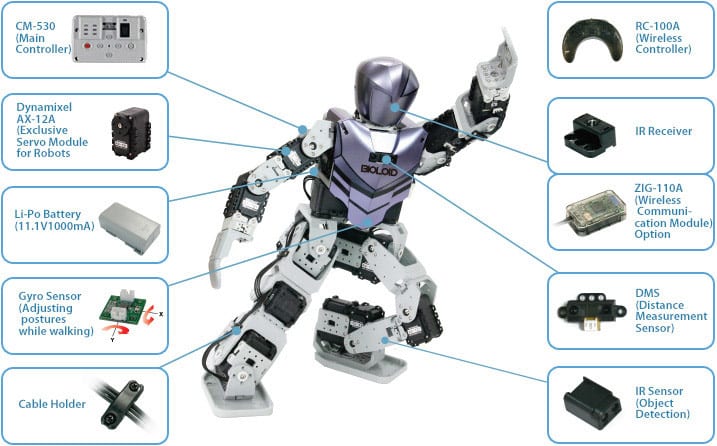

Features:

• ​​Excellent humanoid walking performance (Adjusting posture while walking)
• Various sensors including Gyro, DMS, IR and more external ports
• Remote control capability (IR-default, Zigbee-optional)
• C-style programming & motion teaching with RoboPlus S/W (USB Interface included)
• Transparent humanoid skin for customization
• Digital Packet communication with daisy chain topology
• Building various robots using versatile expansion mechanism

• Gyro Sensor (2 Axis) x 1 pc
• DMS x 1 pc
• IR Sensor x 2 pcs
• RC-100A (Remote Controller) x 1 pc
• Head & Chest Skin x 1 set
• Lipo Battery (11.1V, 1000mA/PCM) x 1 pc
• Lipo Balance Battery Charger
• Screw Driver, Cable Holder
• Mini USB Cable
• Plastic Frame Set
• Quick Start Book
• RoboPlus Software CD

1. Turn the power switch on and the LED will start blinking.
2. Use the MODE button to move the LED to “PLAY”. (The LED will move each time you press the MODE button)
3. Press the START button. (Check whether the LED on “PLAY” is blinking)
   • If the LED does not turn on, check the power cable/connection.
   • If there are no problems with cable, recharge your battery. (Please refer to Charging for more information)
4. Is the battery properly connected?
5. Is the battery fully charged?
6. Is the battery fuse intact?
   • Please refer Fuse Replacement for information on how to replace the fuse.
7. The robot should stand in the basic stance and play a melody according to its type as in the picture below.
8. Make sure to hold the robot in its basic posture for 1 minute.
