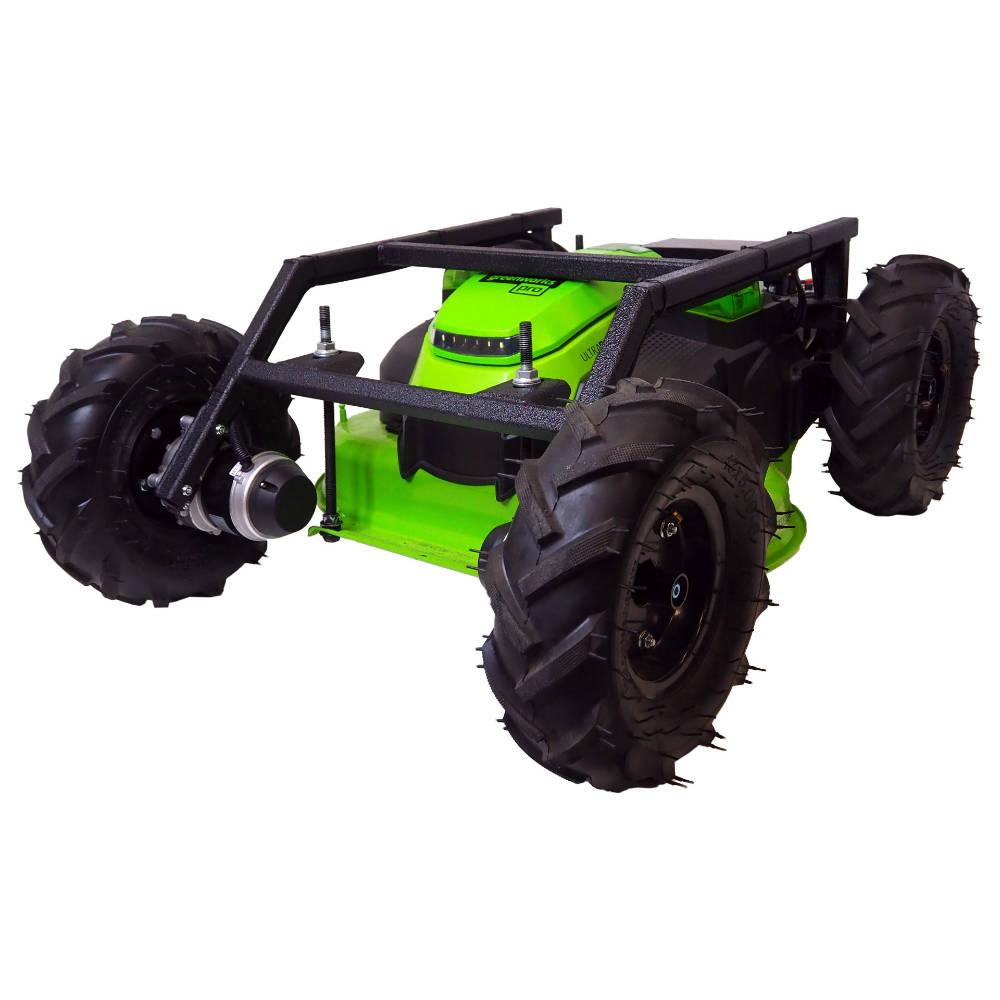

Electric Lawn Mower – 4WD


Buy now


  • This a Electric Lawn Mower – 4WD robot similar to our Lawn Mower Chassis Upfit Robot Package – WheelChair Motor System.
  • Basically The robot is being sold in the configuration listed below.
  • Certainly The robot is fully assembled, tested and is ready to run.
  • For a customized configuration please fill out our Custom Robot Request Form.
  • The robot is driven by the provided 13-inch tires and heavy-duty wheelchair motors.
  • Accordingly The Electric Lawn Mower – 4WD system allows the mower to climb steep slopes and terrain.
  • This mower is faster, more powerful and has a longer run time than our previous 4WD mower.
  • This slope mower can handle steep hills and inclines up to 38 degrees.
  • Basically It uses a double-bladed 25-inch wide deck for mowing.
  • The electric mower means oil distribution on slopes won’t be an issue.
  • Initially The frame of this robot is made from tube steel and heavy gauge steel cut on our CNC plasma table.
  • It is welded together in a jig we set up so the lawnmower inserts into the frame using the existing wheel mounts,
  •  Electric Lawn Mower – 4WD is one which also lets you set the height of the deck.
  • Certainly 75 RPM motors provide the mower with more power for ascending slopes.
  • The robot weighs 170 lbs with motors, batteries, and lawnmower.
  • Basically Steel Frame Robot Chassis for a 25″ deck.
  • 13″ pneumatic drive wheels.
  • PCS-250 24VDC 75 RPM Wheel Chair Motor (Qty 4).
  • 2×60 Motor controller (Qty 1).
  • 12V 35Ahr SLA batteries (Qty 2).
  •  Electric Lawn Mower – 4WD Battery charger.
  • Painted black.
  • 60-volt Cordless Electric Lawnmower batteries and battery charger included.
  • Remote start and stop of electric mower included!
  • Fully assembled.


  •  Electric Lawn Mower – 4WD Drive Method: Direct Drive.
  • Axle Mount: Direct Mount (DM) – the axles are mounted directly to the motor shaft.
  • Speed: ~3 mph (75 RPM motors and 13″ wheels).
  • Dimensions (LxWxH): 40 x 29 x 16 inches.
  • Runtime: Up to 1 hour per charge
