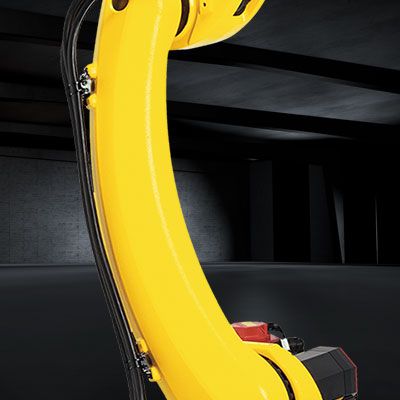

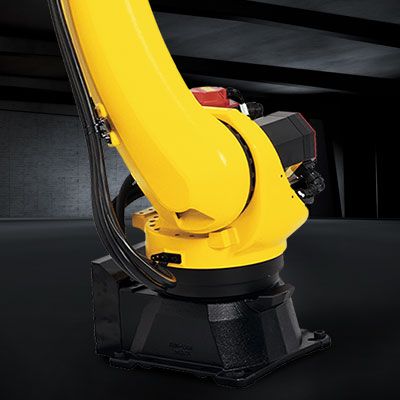

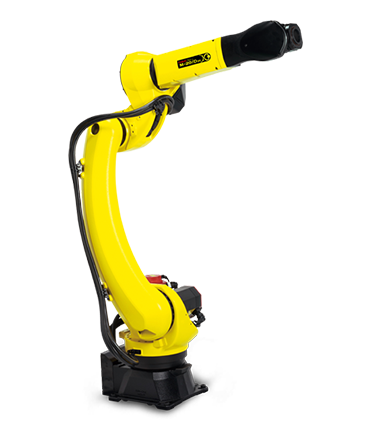

Offering high performance in a small footprint, the FANUC M-20iD/25 is ideally suited to loading and unloading machines as well as parts handling and positioning in crowded factory environments. For best access, it features a compact arm and wrist and, thanks to its new improved design and drive train, offers significantly higher axis speeds and motion performance.


Buy now


  • Specially designed to minimise interference, the M-20iD series is ideal for crowded production environments.

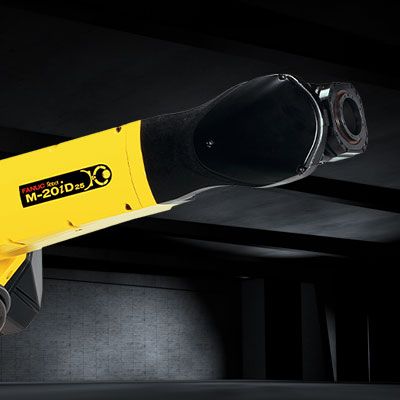

  • To prevent the risk of snagging and cable wear, all cables can be routed through the robot’s large 57 mm diameter hollow wrist and hollow arm.
  • The M-20iD series features a fully integrated cable management system.
  • R-30iB Plus controller for FANUC robots
    -more flexible appearance
    -improved user interface with the new iHMI
    -setup guides for programming
    -increased memory (DRAM 1GB, FROM 256 MB) for an increased higher productivity
