Description

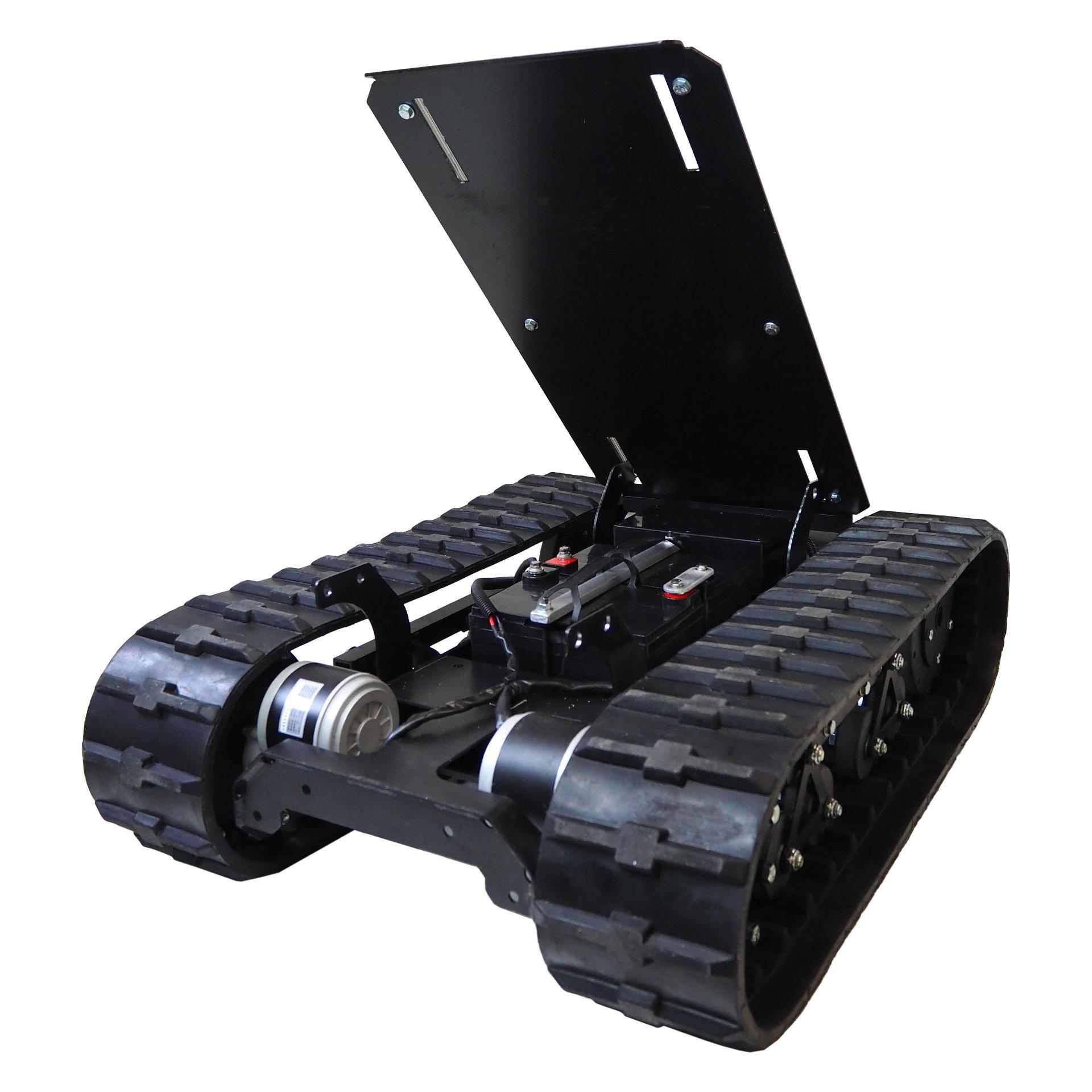

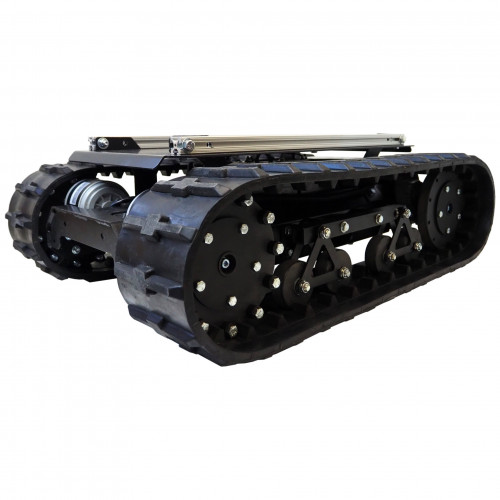

• The GRT1000 Heavy-Duty Tracked ATR Robot is our largest tracked platform.
• It is fast, responsive, and easy to control.
• It uses 6″ wide tracks driven by four powerful wheelchair motors, making this robot capable of hauling heavy loads and navigating difficult terrain.
• Robot chassis is made from steel, welded together to make it extremely robust.
• The chassis is then painted to protect from corrosion. 1″ aluminum extruded rails are included on top of the chassis to make payload attachments easy.
• Basically See the videos tab to watch what this robot is capable of.
• Dimensions (LxWxH): 35″ x 24″ x 12″
• Weight: 154 lbs
• GRT1000 Heavy-Duty Tracked ATR Robot Speed: ~2.25mph (~200 feet per minute)
• Axle Mount: Direct Mount (DM)
• Capacity: Approximately 200lbs
• Initially No extra payload – running robot at ½ to ¾ speed for max efficiency (80 RPM)
• Certainly Drive straight – 8 amps
• Pivot Turn concrete – 15 amps
• Accordingly Gradual Turn – 8 amps
• Uphill (loading dock ramp) – 12 amps
• 200 lb payload – running robot at ½ to ¾ speed for max efficiency
• Basically Drive straight – 8-10 amps
• Initially Pivot Turn concrete – 25-30 amps
• GRT1000 Heavy-Duty Tracked ATR Robot Gradual Turn – 18 amps
• Uphill (loading dock ramp) – 18 amps
• Basically Chassis: Custom Tactical Black Chassis
• Motors: Four (4) 24VDC 75RPM Wheelchair Motors
• Certainly Battery: Two (2) 12V 35Ah SLA Battery
• Motor Controller: One (1) Sabertooth Dual 60A Motor Driver
• Control System: FLYSKY FS-i6x 2.4G 6Ch Transmitter & Receiver
