Description

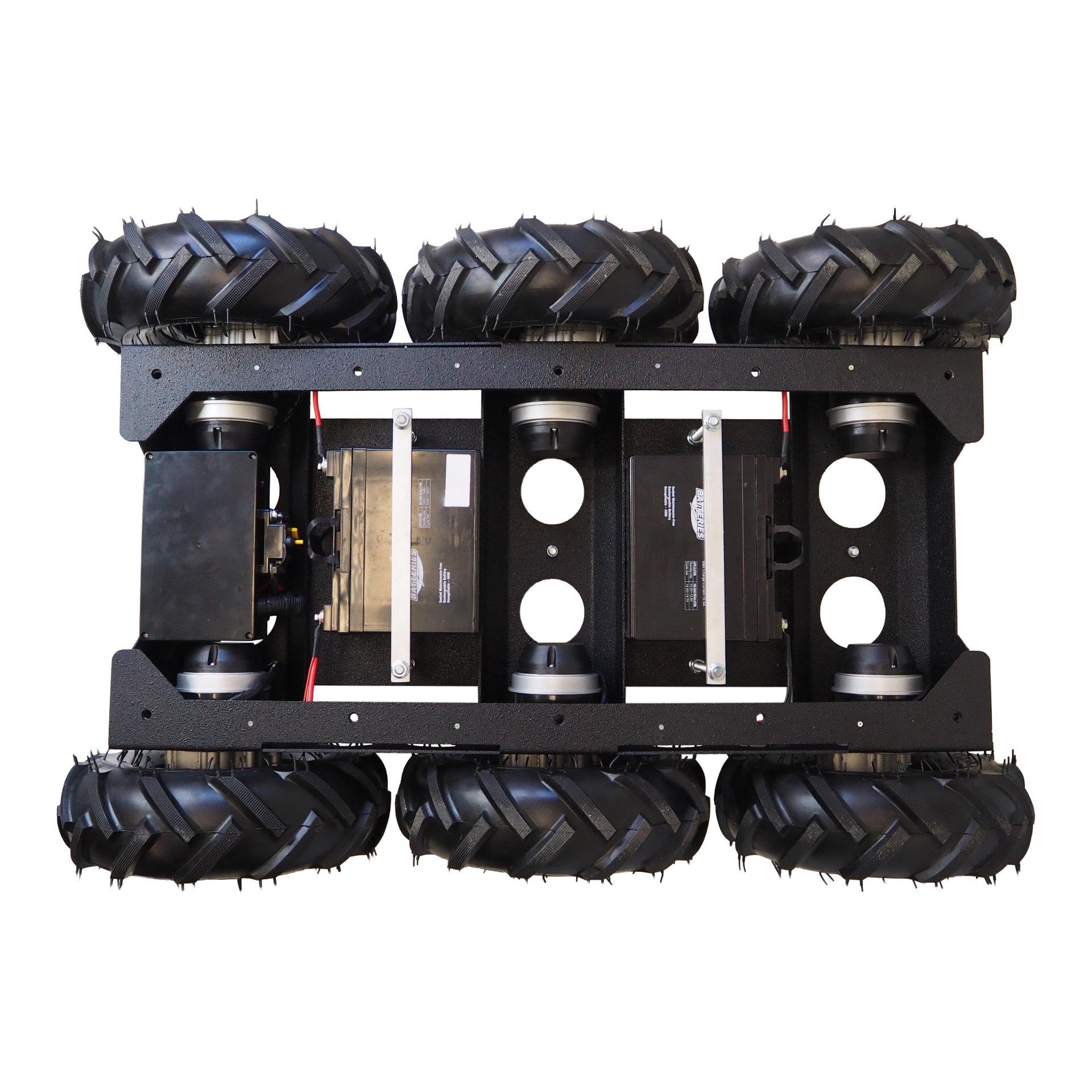

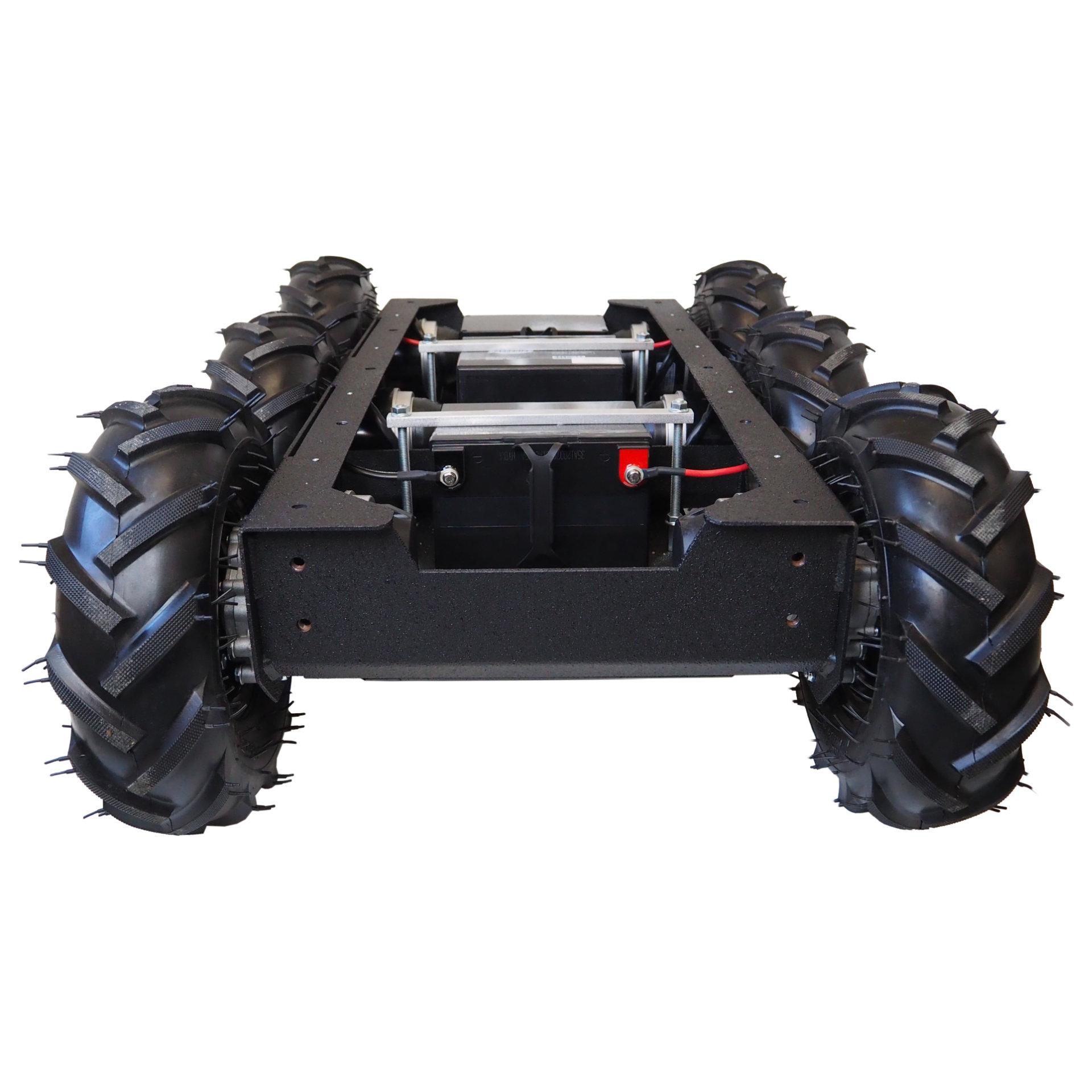

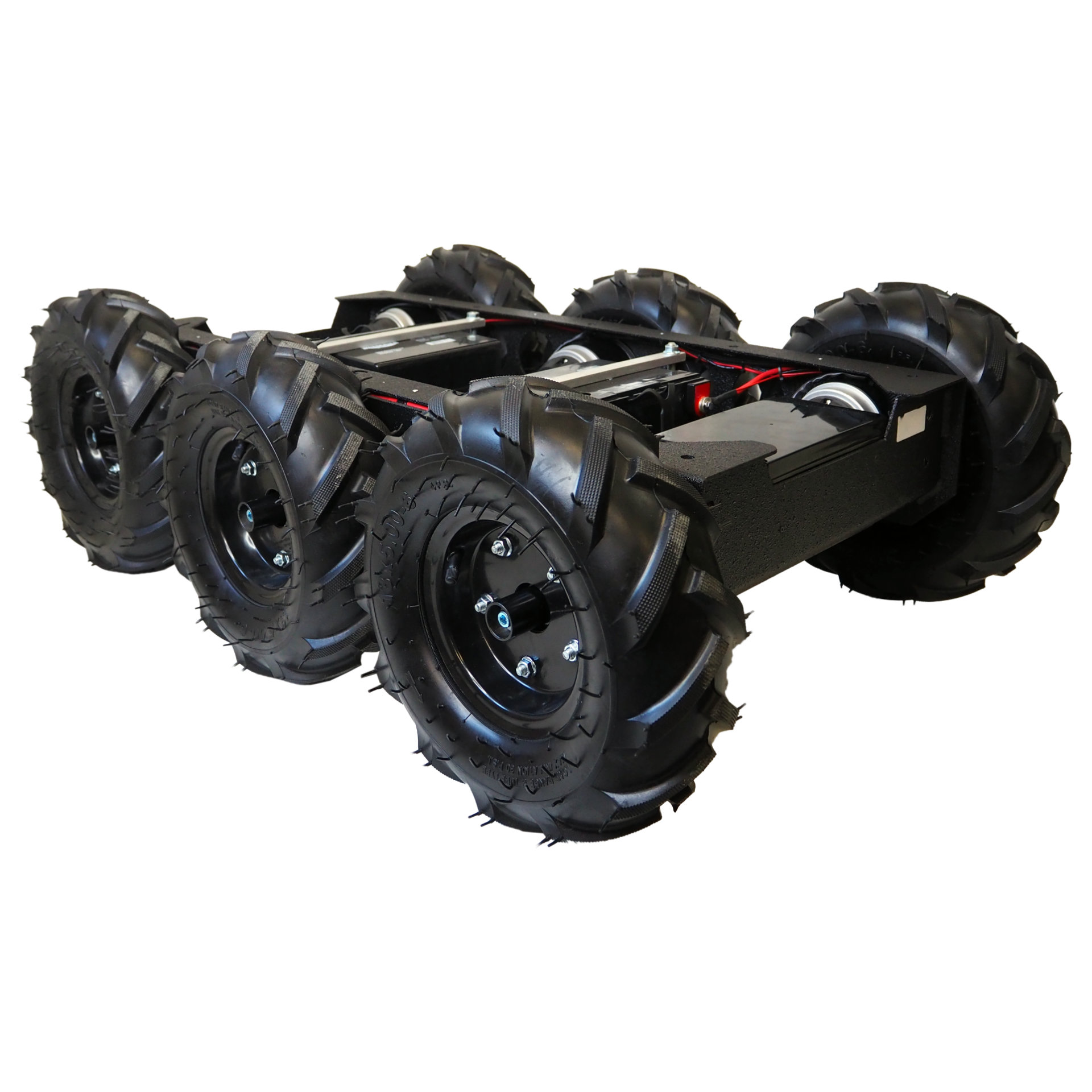

• This PCS1500 6WD Heavy-Duty All-Terrain Platform Robot is a configurable robot kit with selectable options.
• The options are pre-selected to reflect our recommended configuration but can be changed to suit your needs.
• Our engineers combined powerful motors with a heavy-duty chassis to create a sturdy, reliable platform.
• The Heavy-Duty All-Terrain Platform Robot is built to handle a high payload capacity while maneuvering across difficult terrain.
• It’s fast, responsive, and easy to control.
• It uses three pairs of our heavy-duty motors and our 13″ tiller tires.
• The wheels mount directly to the motor shaft for simplicity and ease of assembly.
• The center wheels are dropped slightly lower than the outer wheels resulting in low-wear, low-current steering on a dime.
• See our ATR page for more details about our All Terrain Robots.
• This Heavy-Duty All-Terrain Platform Robot kit does not come with a wiring kit if ordered unassembled.
• Buyers must source their own wire and other wiring accessories.

• Dimensions (LxWxH): 41″ x 26″ x 14″
• Weight: 215 lbs
• Speed: 2.9 mph (255 ft/min)
• Axle Mount: Direct Mount (DM)
• Capacity: Up to 200 pounds

• No extra payload – running robot at ½ to ¾ speed for max efficiency
• • Drive straight – 6-7 amps
  • Pivot Turn concrete – 8 amps
  • Gradual Turn – 6 amps
  • Uphill (loading dock ramp) – 10 amps

• 200 lb payload – running robot at ½ to ¾ speed for max efficiency
• • Drive straight – 6-8 amps
  • Pivot Turn concrete – 12-14 amps
  • Gradual Turn – 10 amps
  • Uphill (loading dock ramp) – 20 amps

Standard Configuration

This is our recommended configuration for the PCS1500-DM6

• Assembled and ready to run
• Textured black chassis
• Motors: Six (6) PCS-250 24V 75RPM DC Wheel Chair Motors
• Wheels and Shaft Sets: Six (6) Direct Drive 13″ Tiller Tires with 17mm bore ATR Shafts
• Batteries: Two (2) 12V 35Ah SLA Batteries
• Motor Controller(s): One (1) Sabertooth Dual 60A Motor Driver
• Control System: One (1) Flysky FS-i6x 2.4Ghz 6-Channel Transmitter/Receiver
